KING FISHER PROJECT

โรงงานผลิตอาหาร
img-S0032

KING FISHER PROJECT

Business Type  :   Food Industry

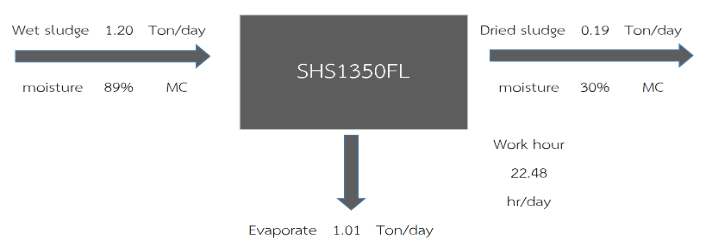

Sludge Type
Sludge Capacity
Wet Sludge Moisture
Dry  Sludge Moisture
Sludge Model
Biological
33 Ton / Month
89 % MC
30 % MC

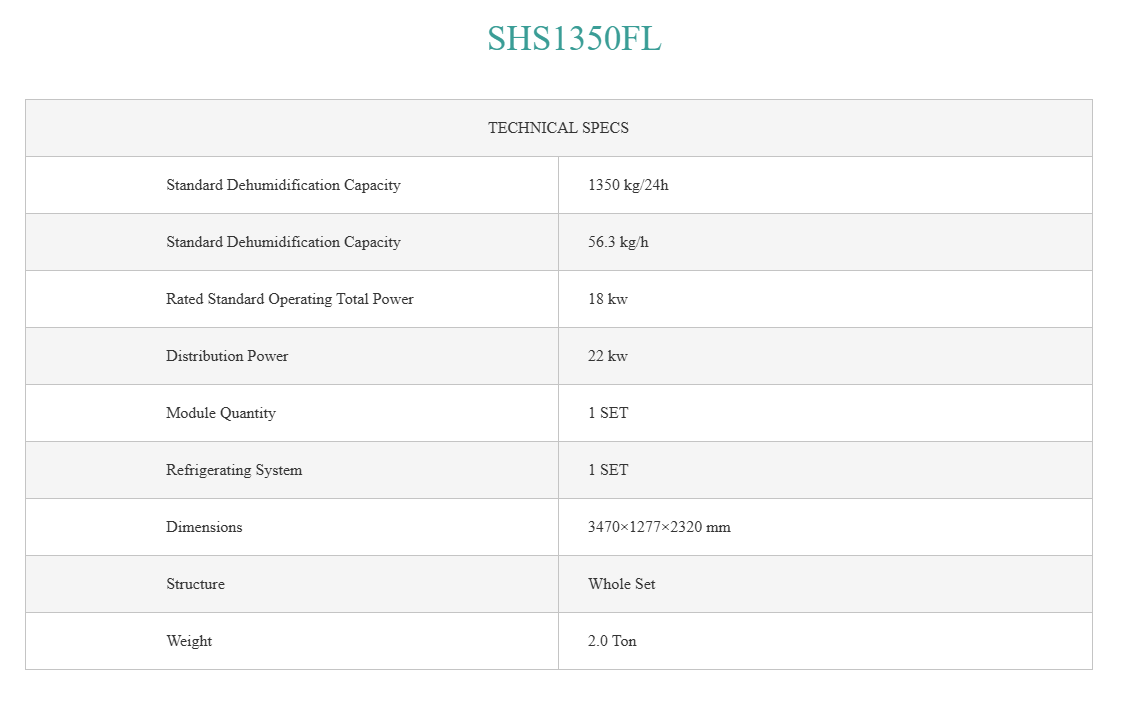

Belt-Tyep Heat Pump Sludge Dryer Fan Cool
SHS1350FL

Problem           :  ค่ากำจัดกากตะกอนสูงและมีระยะทางส่งกำจัดไกล

Solution           :  เครื่องอบกากตะกอน Belt-Tyep Heat Pump Sludge Dryer Fan Cool SHS1350FL

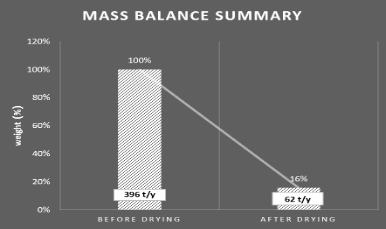

Result              :  สามารถลดค่าขนส่งในการกำจัดกากตะกอนได้มากกว่า 40%

                         :  กากตะกอนที่ออกจากเครื่องอบฯ สามารถนำไปพัฒนาเป็นปุ๋ยอินทรีย์ได้

                         :  สามารถคืนทุน (ROI) ภายใน 5 ปี

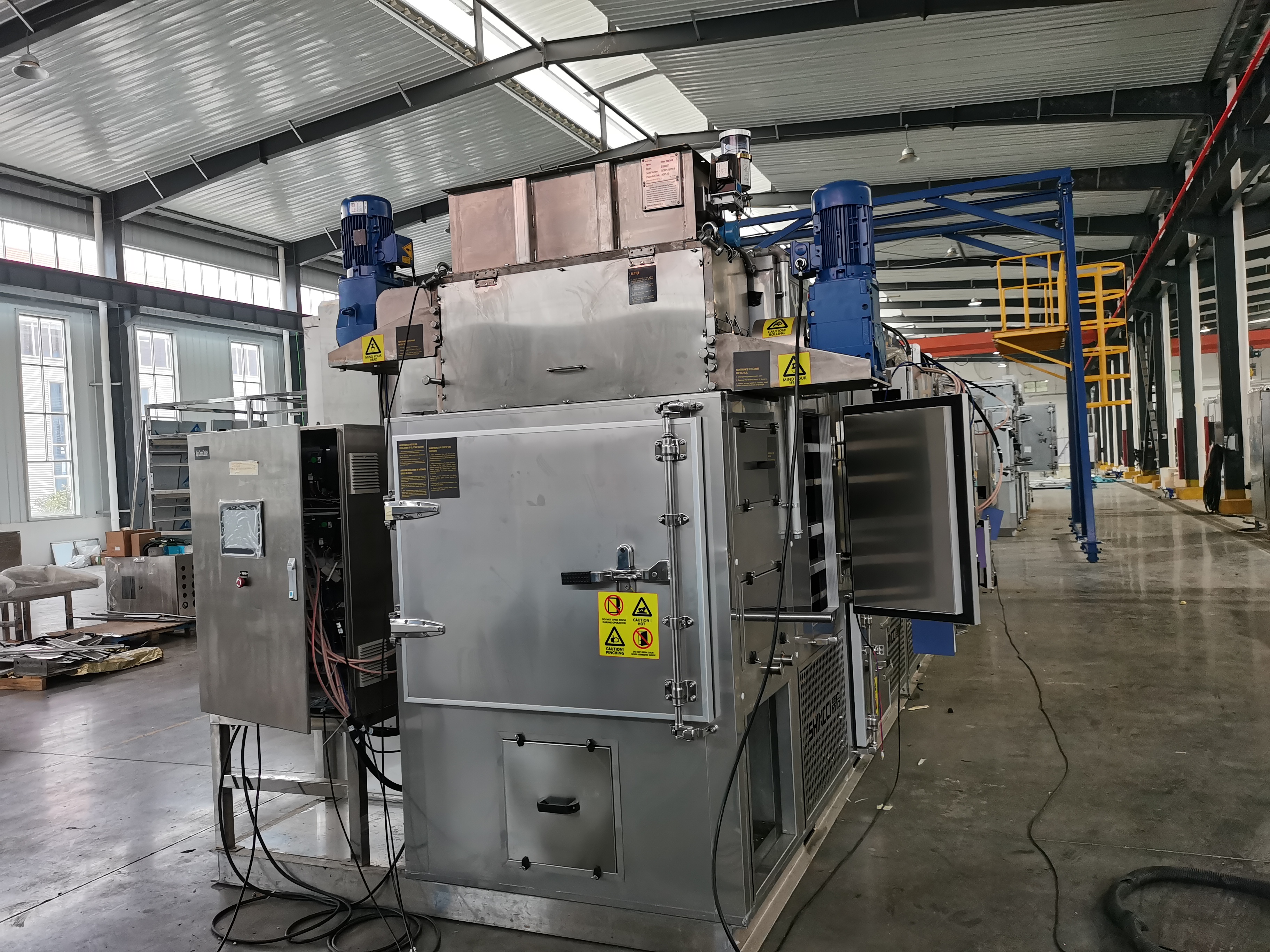

Low Temp.Belt-Type Sludge Dryer

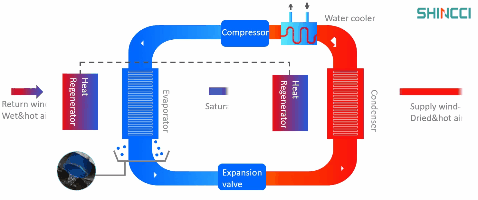

Heat pump, Mesh belts and Insulation boards are all combined in one integratedmodule, which improves airtightness and makes onsite installation easier.

Expansion valves adopted electronic type so as to increase dehumidification capacity.

Heat exchangers and Refrigerant pipes are made of SUS316L instead of copper.

Compressors are all installed in independent chambers, well- protected from the corrosive-gas to extend their service life.

Two modules share one blower and the belt-driven type blower is installed in the Heat pump module instead of the mesh belts module, which makes cleaning and maintenance easier.

Standard operation consumption is 240~300kw.h/1t.H20 (MAX).

SUS316L base of dryer replacing aluminium alloy support, making sure a strong anti-corrosion performance.

The service access door are upgraded to quick-opening type and improved with unique airtight structure design, making maintenance and inspection easier and effectively.


Powered by Froala Editor

Powered by Froala Editor

Powered by Froala Editor

Media and Brochure

VDO สาธิตการทำงำนของเครื่องอบแห้งแบบ low temperature sludge dryer

https://www.youtube.com/watch?v=7hNWaUYs9Ik

VDO รีวิวเครื่องอบกากตะกอนโดยผู้ใช้งานจริง

https://www.youtube.com/watch?v=pVjmGUDKcCk
