NEVIA PROJECT

โรงงานผลิต Consumer Product
img-S0031

NEVIA PROJECT

Business Type  : Cosmetic Product



Sludge Type


Sludge Capacity
Wet Sludge Moisture

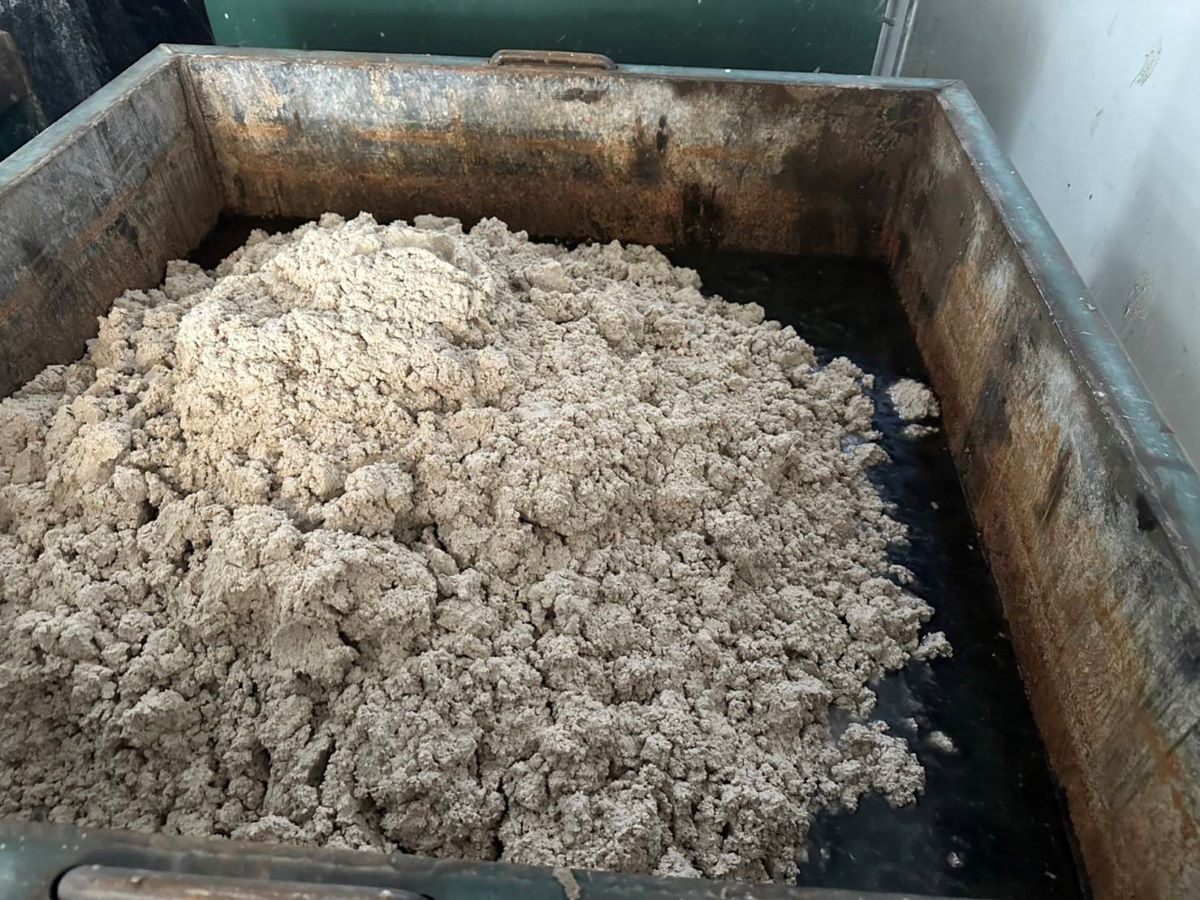

Dry Sludge Moisture
Sludge Model

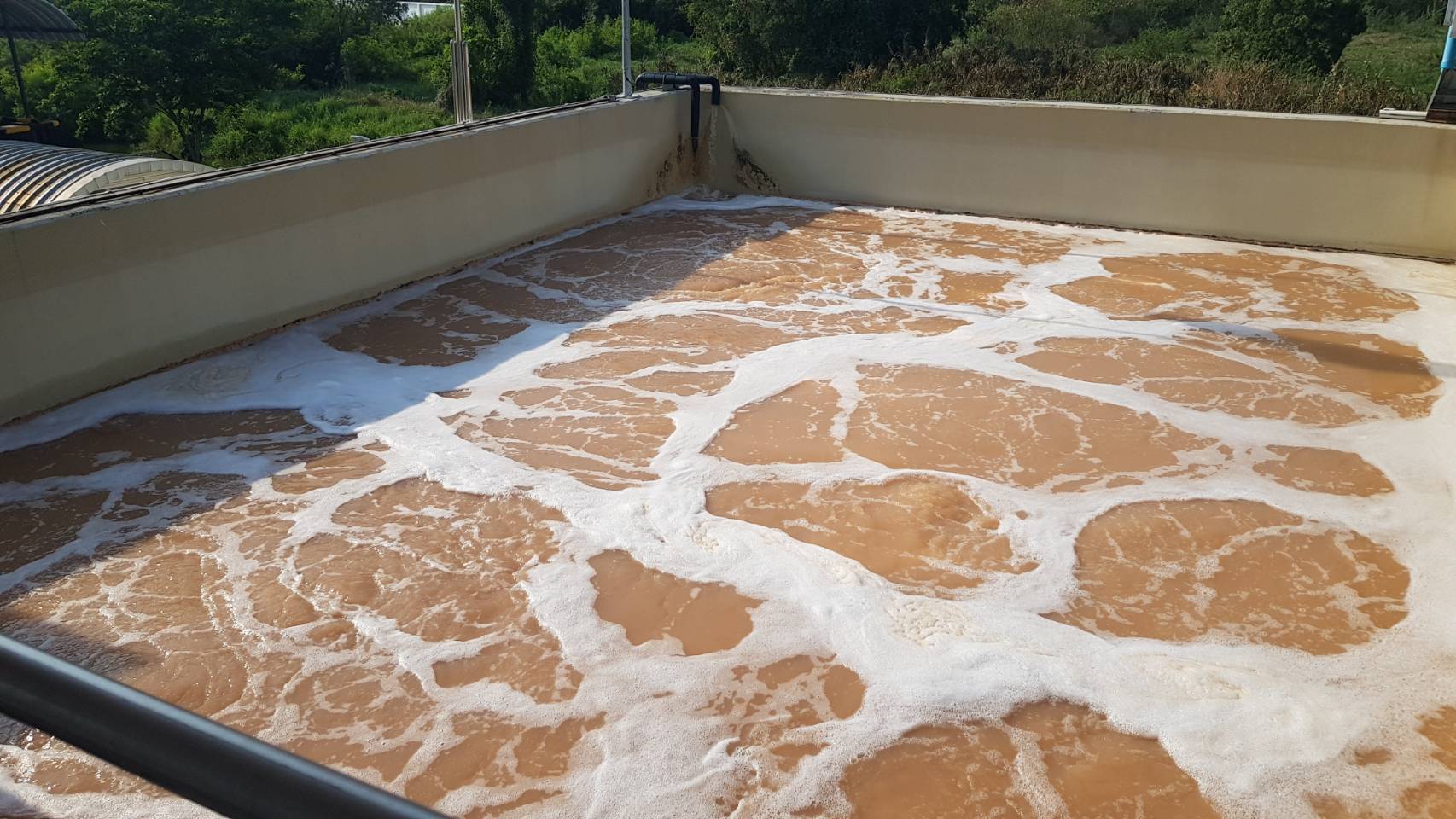

Biological

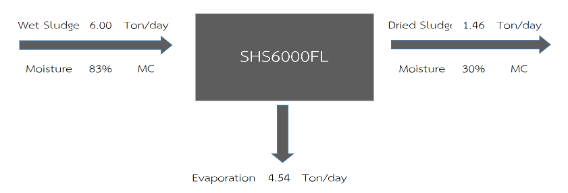

165 Ton/month
83 % MC
30 % MC
Belt-Tyep Heat Pump Sludge Dryer Fan Cool
SHS6000FL


Problem     :  ต้องการลดการทิ้งของเสีย (กากตะกอน) ให้ได้มากที่สุด
Solution     :  เครื่องอบกากตะกอนให้แห้งด้วย Belt-Tyep Heat Pump Sludge Dryer Fan Cool SHS6000FL

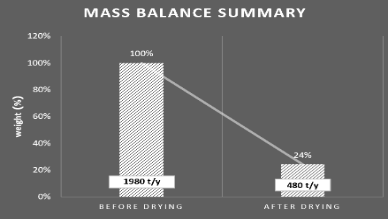

Result        :  ลดปริมาณของกากตะกอนที่ต้องกำจัดได้ถึง 50%
                   :  ลดค่าใช้จ่ายในการขนส่งเพื่อกำจัดได้มากกว่า 70%
                   :  ระยะเวลาคืนทุน (ROI) ไม่เกิน 7 ปี

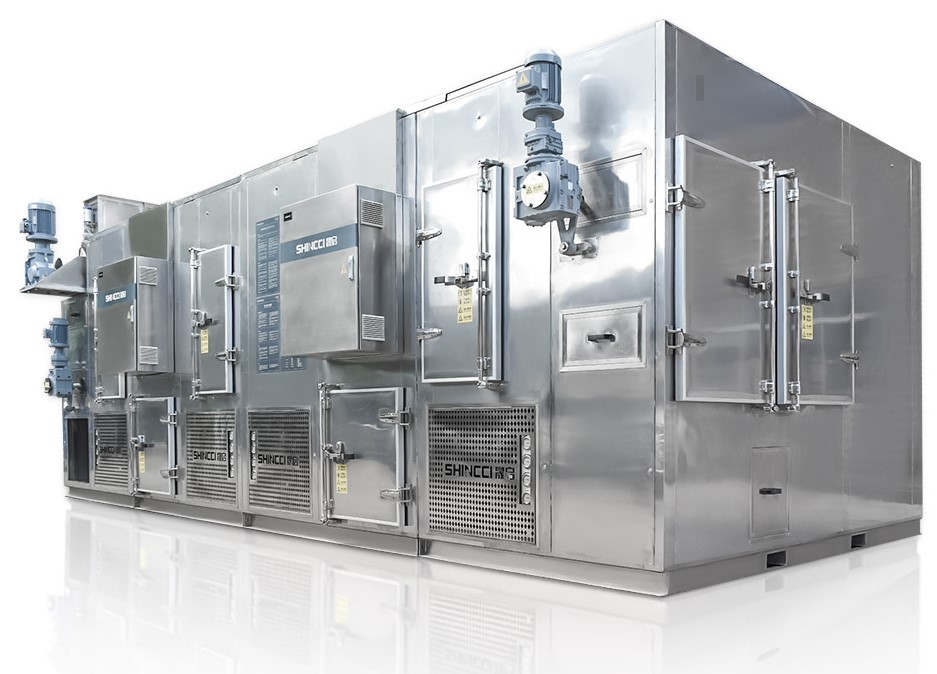

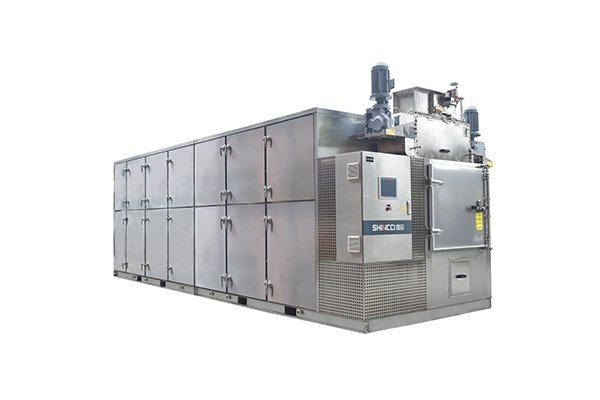

Model SHS Series - Low Temperature Belt-Type Sludge Dryer

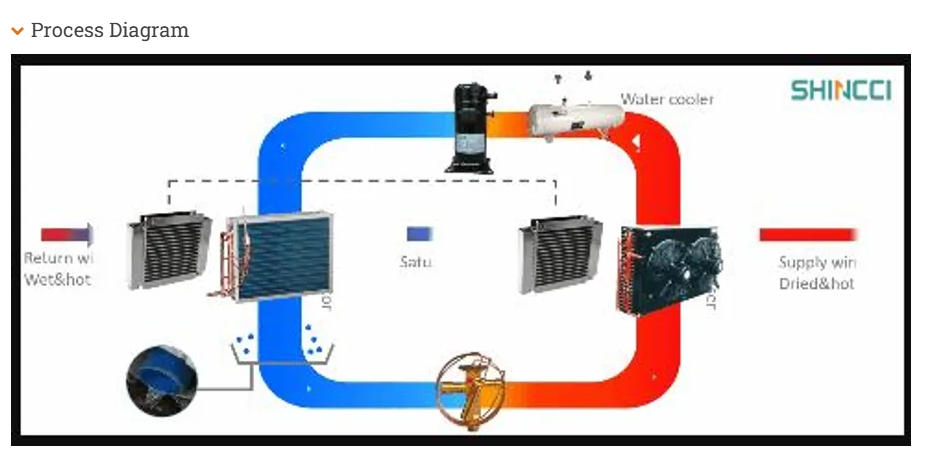

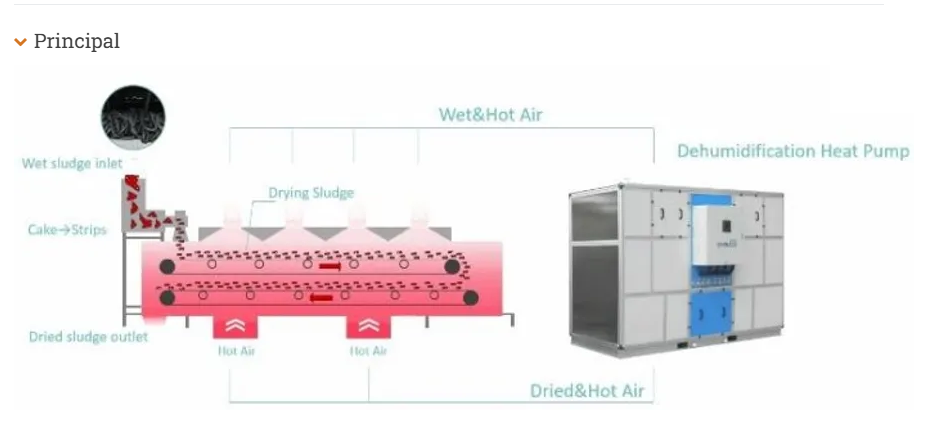

SHS Series provides higher capacity, dryness and low energy consumption. They are the new generation machines. Heat pump, Mesh belts and Insulation boards are all combined in one integratedmodule, which improves airtightness and makes onsite installation easier. Expansion valves adopted electronic type so as to increase dehumidification capacity. Heat exchangers and Refrigerant pipes are made of SUS316L instead of copper. Compressors are all installed in independent chambers, well- protected from the corrosive-gas to extend their service life. Two modules share one blower and the belt-driven type blower is installed in the Heat pump module instead of the mesh belts module, which makes cleaning and maintenance easier. Standard operation consumption is 240~300kw.h/1t.H20 (MAX). SUS316L base of dryer replacing aluminium alloy support, making sure a strong anti-corrosion performance. The service access door are upgraded to quick-opening type and improved with unique airtight structure design, making maintenance and inspection easier and effectively.


Powered by Froala Editor

Powered by Froala Editor

Powered by Froala Editor

Powered by Froala Editor

Powered by Froala Editor

Powered by Froala Editor


Media and Brochure

VDO สาธิตการทำงำนของเครื่องอบแห้งแบบ low temperature sludge dryer

https://www.youtube.com/watch?v=7zqNhMSQe-w


VDO รีวิวเครื่องอบกากตะกอนโดยผู้ใช้งานจริง

https://www.youtube.com/watch?v=pVjmGUDKcCk


สนใจติดต่อ

บริษัท ไฮคอพเอ็นเนอร์ยี่  จำกัด
คุณธรรมรัตน์ (K.Ake)
Contact   :  098-354-2464,
Line ID    : @hicopenergy
ผู้แทนจำหน่ายในประเทศไทย
